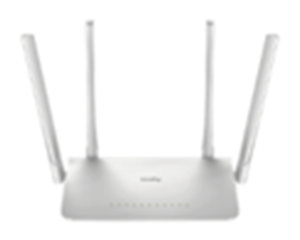

AC1200 Gigabit Wi-Fi Mesh Router

AC1200 Gigabit Dual Band Wi-Fi Mesh Router, 5 × 10/100/1000Mbps RJ45 Ports, 4 x 5dBi fixed antennas, WiFi router/AP/ Repeater/WISP Mode, 802.11ac/a/b/g/n, 867Mbps at 5GHz + 300Mbps at 2.4GHz, Zerotier/Wireguard/OpenVPN/IPSec/L2TP/PPTP VPN, DNS over Cloudflare/Google/Quad9, DDNS, WiFi Schedule, IPv6, WPS,WPA3, IPTV, WOL, TR069/TR098/TR111/TR181, Cudy Mesh, Cudy APP
Call for pricing
Model VersionWR1300 4.0
CPUCPU Details880 MHz Dual-Core, MIPS1004Kc
Memory/StorageFlash/ROM16 MB (128 Mbit) NOR
DDR/RAM128 MB (1 Gbit) DDR3
Wireless5 GHz Wi-Fi Speed867 Mbps
2.4 GHz Wi-Fi Speed300 Mbps
5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas4× Fixed
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
BeamformingTrue
Range PerformanceMax: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall PerformanceTwo wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
InterfacesGigabit RJ45 Ports5
Ethernet Notes1× WAN port, the rest are LAN ports
LED
  • Power
  • Internet
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
  • Speed/Link/ACT of Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power InputDC Jack
PowerPower MethodsDC
DC Input12V 1A
Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W)9.27W
Idle Power Consumption (W)3.56W
ReliabilityEnvironment
  • Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
  • Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
CertificationsFCC, CE
MechanicalInstallation
  • Desktop
  • Wall-mount
Dimension210×144×31 mm
8.27×5.67×1.22 inches
Product Weight314.2 g (11.08 oz.)
Package Content
  • WR1300
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering InformationRetail Package WeightEU: 696.0 g (24.55 oz.)
Retail Package Dimension280×278×56 mm
11.02×10.94×2.2 inches
Units per Carton20
Carton Dimension59×58×30.3 cm
23.23×22.83×11.93 inches
Carton Gross WeightEU: 15.3 kg (33.73 lbs)
Carton Net WeightEU: 13.9 kg (30.64 lbs)
