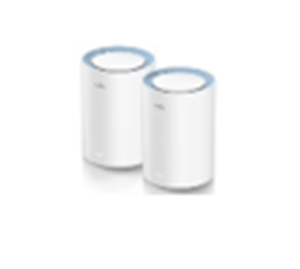

| Model Version | M1200 1.0 |
|---|
| CPU | CPU Details | 580 MHz Single-Core, MIPS24KEC |
|---|
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
|---|
| DDR/RAM | 128 MB (1 Gbit) DDR3 |
|---|
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
|---|
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
|---|
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
|---|
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
|---|
| Wi-Fi Antennas | 2× Internal |
|---|
| FEM or PA/LNA | - 5 GHz: 2× Internal
- 2.4 GHz: 2× Internal
|
|---|
| Beamforming | True |
|---|
| Range Performance | Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|---|
| Wall Performance | Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') |
|---|
| Indoor Coverage Reference | 2 Pack: 160 m² (1700 sq ft)
3 Pack: 220 m² (2400 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room. |
|---|
| Interfaces | 10/100 Mbps RJ45 Ports | 2 |
|---|
| Ethernet Notes | Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode |
|---|
| LED | System |
|---|
| Physical Buttons | |
|---|
| Power Input | DC Jack |
|---|
| Power | Power Methods | DC |
|---|
| DC Input | 12V 1A |
|---|
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
|---|
| Max Power Consumption (W) | 8W |
|---|
| Reliability | Environment | - Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
- Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
|
|---|
| Certifications | FCC, CE |
|---|
| Mechanical | Installation | Desktop |
|---|
| Dimension | F110×154.5 mm
F4.33×6.08 inches |
|---|
| Product Weight | - 2-Pack | EU: 586 g (20.67 oz.)
- 3-Pack | EU: 879 g (31.01 oz.)
- 1-Pack | EU: 293 g (10.34 oz.)
|
|---|
| Package Content | - M1200
- Power Adapter
- Ethernet Cable
- Installation Guide
|
|---|
| Ordering Information | Retail Package Weight | - 2-Pack | EU: 1156 g (40.78 oz.)
- 3-Pack | EU: 1658 g (58.48 oz.)
- 1-Pack | EU: 661 g (23.32 oz.)
|
|---|
| Retail Package Dimension | - 1-Pack:
145×130×265 mm
5.71×5.12×10.43 inches - 2-Pack:
330×130×265 mm
12.99×5.12×10.43 inches - 3-Pack:
380×130×265 mm
14.96×5.12×10.43 inches
|
|---|
| Units per Carton | - 1-Pack: 16
- 2-Pack: 8
- 3-Pack: 4
|
|---|
| Carton Dimension | - 1-Pack: 57×56×26 cm
22.44×22.05×10.24 inches - 2-Pack: 55×54.5×35.3 cm
21.65×21.46×13.9 inches - 3-Pack: 53.6×40×28.7 cm
21.1×15.75×11.3 inches
|
|---|
| Carton Gross Weight | - 2-Pack | EU: 10.8 kg (23.81 lbs)
- 3-Pack | EU: 7.6 kg (16.76 lbs)
- 1-Pack | EU: 12.0 kg (26.46 lbs)
|
|---|
| Carton Net Weight | - 2-Pack | EU: 9.4 kg (20.72 lbs)
- 3-Pack | EU: 6.6 kg (14.55 lbs)
- 1-Pack | EU: 10.6 kg (23.37 lbs)
|
|---|
