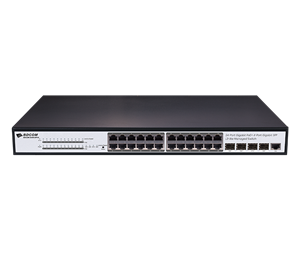

BDCOM S2500-24P4S

24-Port Gigabit PoE+ 4-Port Gigabit SFP L3-lite Managed Switch (single AC-220V power supply, 370W PoE budget, fanless, 1U, standard 19-inch rack-mounted installation)
Manufacturer: BDCOM
Call for pricing
Interface24-Port Gigabit PoE+,
4-Port Gigabit SFP
Console1 RJ45 port, 1 RST button
Backplane56 Gbps
Forwarding rate42 Mpps
Chassis
Dimensions (WxDxH)(mm)440x210x44
Weight(KG)(empty)2.2
Package
Dimensions (WxDxH)(mm)555x295x88
Power consumption
Weight(KG)3.3
no-load< 17W
Power supply
full-load393.5W
AC: 100V-240V, 50Hz±10%400W
POE power budget370 W
Total output BTU (1000BTU/H=293W)1365.19
Fan number2
Noise@25°C(dBA)37.5
MTBF(H)>50,000
Forwarding modeStore-forward
Flash (MB)16
DRAM (MB)128
MAC8K
Buffer size(Mb)4.1
Jumbo frame9K
Total SVI10
