System | |
---|
Processor | Intel® Celeron® Processor J1900 Quad-Core 2.0 GHz |
Memory | 4G DDR3 Onboard |
Graphic | Intel® Gen7 Intel Graphics with DX11*, OGL3.2 |
Operating System | Windows 7/8, WS7E, WS8 |
Storage | |
---|
Type | 1 x 2.5" SATA HDD / SSD, 1 x mSATA |
RF Communication | |
---|
3G/4G | GSM/LTE (Optional) |
WLAN | 802.11a/b/g/n/ac (Optional) |
Bluetooth | Bluetooth 4.0 (Optional) |
GPS | GPS/Beidou (Optional) |

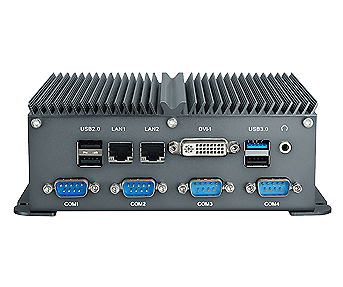

I/O Connectors | |
---|
COM | 3 x RS-232 1 x RS-232/485 |
USB | 3 x USB 2.0 1 x USB3.0 |
LAN | 2 x Intel i211 for GbE |
Video | 1 x DVI-I |
Expansion | 1 x full-size mini PCIe, 1 x half-size mini PCIe |
Qualification | |
---|
Certifications | CE, FCC Class A |
Environmental | |
---|
Operating Temp. | -20 ~ 60?(SSD) |
Storage Temp. | -40 ~ 85? |
Relative Humidity | 10 ~ 95% |
Power Management | |
---|
Power Input | DC 9-24 V |
Mechanical | |
---|
Housing | Aluminum alloy |
Mounting | Wall-mount |
Dimension (W x H x D) | 154 x 112.5 x 55 mm |
Weight | 0.9kg |
Optional Modules | |
---|
GPIO | 4 x GPI and 4 x GPO |
Power Ignition | ACC |
External LVDS | Dual channel 24-bit, max resolution 1920x1200@60 |
Remote Power On/Off | 2-pin Remote Power On/Off Switch |
CAN | 2 x CANbus 2.0B |
External Cfast | 1 x CFast2.0 Slot |
Video Capture | 4 CCTV Cameras input and 4 MIC (120/100fps) |
LAN | 1/2 x RJ45 GbE LAN(Intel i210) |
