Flex-guide

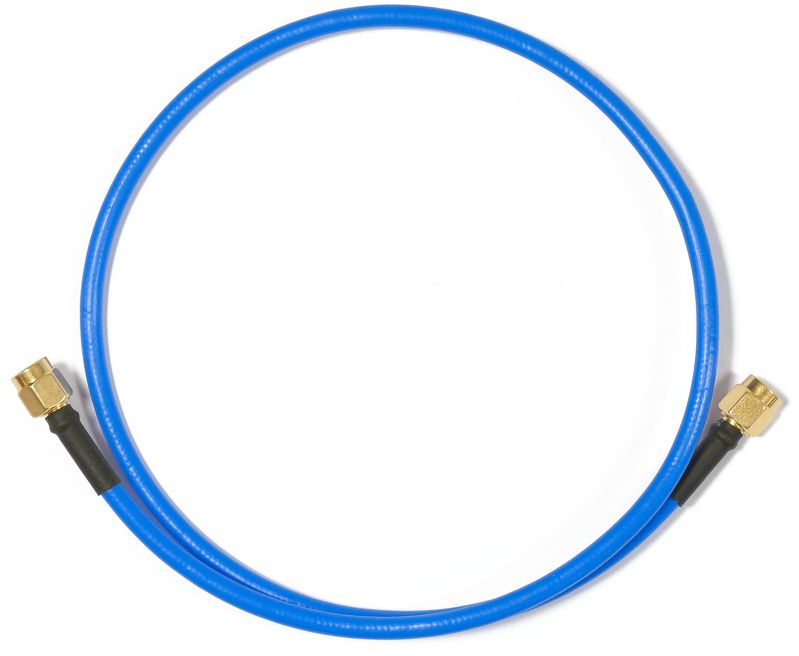

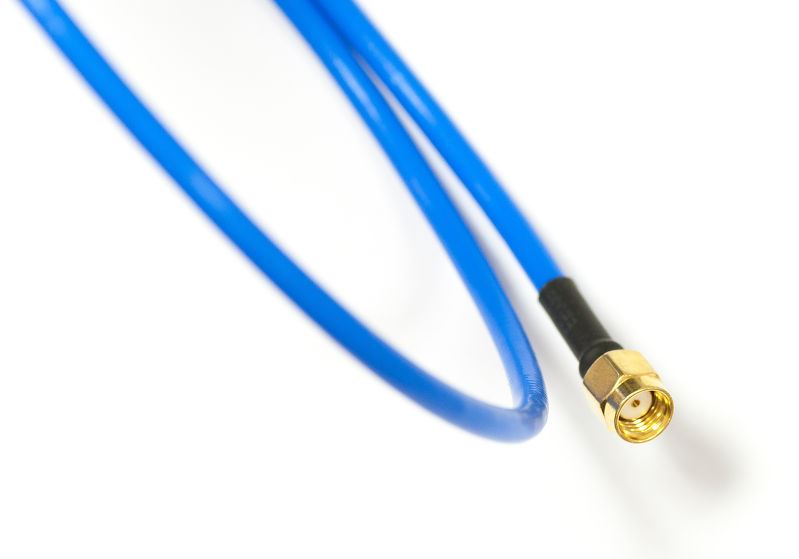

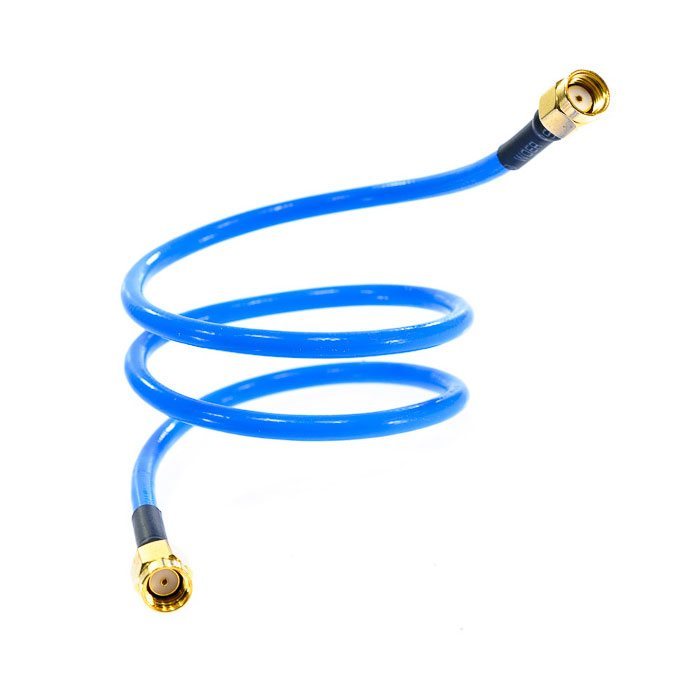

A super low loss 50cm long RPSMA cable for superior connection quality, suited for indoor and outdoor use, this cable provides superior matching and loss values.
The name of this cable comes from combining the words “flexible” and “waveguide”, to denote the high end features of this product.
The inner conductor is silver plated copper, and both connectors are soldered, not crimped, for the best possible signal quality. Ideally suited for our BaseBox and other products with RPSMA connectors, and works with most antennas.
Product specifications
| Details |
|---|
| Product code | ACRPSMA |
| Operating Temperature | -55C to 125C |
| Signal loss | below 0.65dB |
| Matching | above -20dB |
| Frequency | up to 6GHz |
