PowerBox Pro

Five Gigabit Ethernet Router with 4xPoE-out ports, SFP cage and outdoor enclosure
Call for pricing

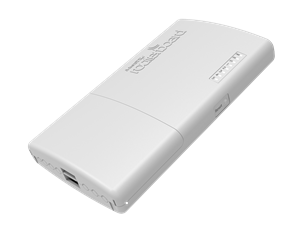

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.

The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.

Specifications

Details
Product codeRB960PGS-PB
ArchitectureMIPSBE
CPUQCA9557
CPU core count1
CPU nominal frequency800 MHz
Switch chip modelQCA8337
Dimensions125 x 52 x 225 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM128 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C

Powering

Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max power consumption54 W
Max power consumption without attachments6 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage12-57 V

PoE-out

Details
PoE-out portsEther2-Ether5
PoE out802.3af/at
Max out per port output (input 18-30 V)1 A
Max out per port output (input 30-57 V)450 mA
Max total out (A)2 A

Ethernet

Details
10/100/1000 Ethernet ports5

Fiber

Details
SFP ports1

Other

Details
PCB temperature monitorYes
Voltage MonitorYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS

Included parts
