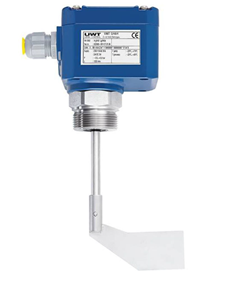

| Measurement principle | Rotary Paddle |
|---|
| Measuring task | Point level measurement |
|---|
| Versions | - Rigid shaft
- Pendulum shaft
- Rope extension (kit)
|
|---|
| Medium | Solids |
|---|
| Mounting position | - top
- horizontal
- angled (top)
- angled (in the cone)
- in down pipes
- on a socket
|
|---|
| Ambient temperature | -40°C … +60°C (-40°F … +140°F) |
|---|
| Process temperature | -40°C ... +1100°C (-40°F … +2012°F) |
|---|
| Process pressure | -0,9 bar ... +10 bar (-13.1 psi … +145 psi) |
|---|
| Minimum sensitivity | > 15 g/l (> 0.9 lbs/ft3) |
|---|
| Housing type | standard |
|---|
| Housing material | |
|---|
| Housing protection rating | IP66 |
|---|
| Threaded connection | - = G 1"
- = NPT 1"
- = M30 x 1,5
|
|---|
| Flange connection | |
|---|
| Hygienic fittings | = Triclamp 2" |
|---|
| Wetted materials | - Aluminium
- Stainless steel 1.4301 (304)
- Stainless steel 1.4305 (303)
- Stainless steel 1.4404 (316L)
- Stainless steel 1.4541 (321L)
- NBR
- FPM
- PTFE
- Graphite
- Ceramic
|
|---|
| Accuracy | --- |
|---|
| Mechanical load | - rigid shaft: 50 Nm
- pendulum shaft: 0,4 kN
|
|---|
| Min. immersion length | 70 mm (2.76") |
|---|
| Max. immersion length | 1 m (3.34') |
|---|
| Power supply | - 24V AC
- 48V AC
- 115V AC
- 230V AC
- 24V DC
- universal voltage (24V DC / 22...230V AC)
|
|---|
| Signal output | - Microswitch
- Relay SPDT
- Transistor PNP
|
|---|
| Approvals | |
|---|
| Ex markings | Ex t |
|---|
| Hygienic / Pharma | - EHEDG (Type ED)
- EG 1935/2004
- FDA
|
|---|
| Ship approval | --- |
|---|
| Overfill protection | --- |
|---|
| SIL qualification | --- |
|---|
| Further approvals | --- |
|---|
| Adjustment possibility | |
|---|
| Optical indicator | LED |
|---|
| Features | - adjustable sensitivity
- adjustable output delay
- switchable logic (Fail Safe High - Fail Safe Low)
- Fail safe alarm (rotation control)
|
|---|
