SafeSurgePRO | DBII

SafeSurge Ethernet Lightning Protection Through Spikes and unwanted Signals.
Manufacturer: DBII
Call for pricing

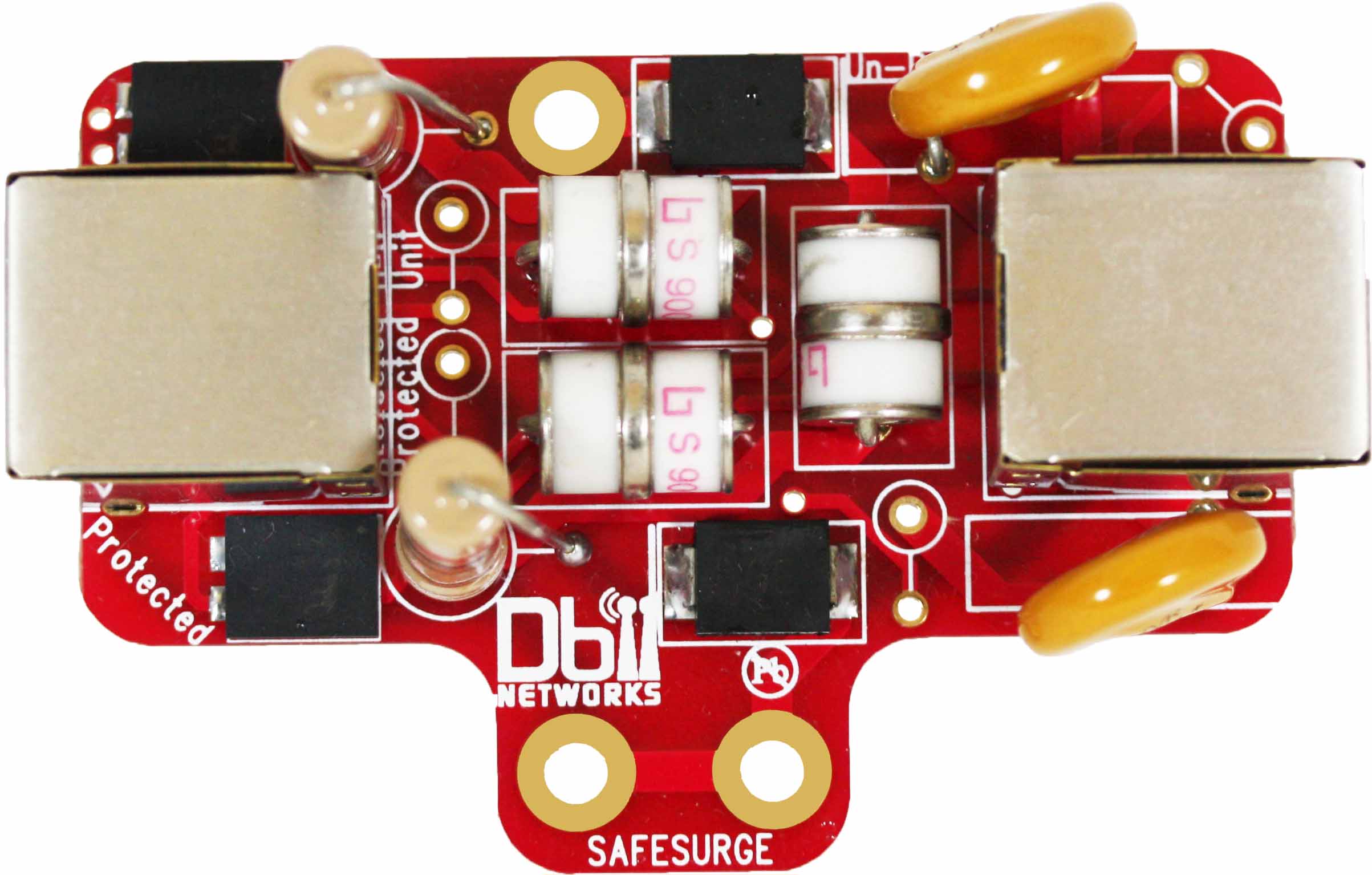

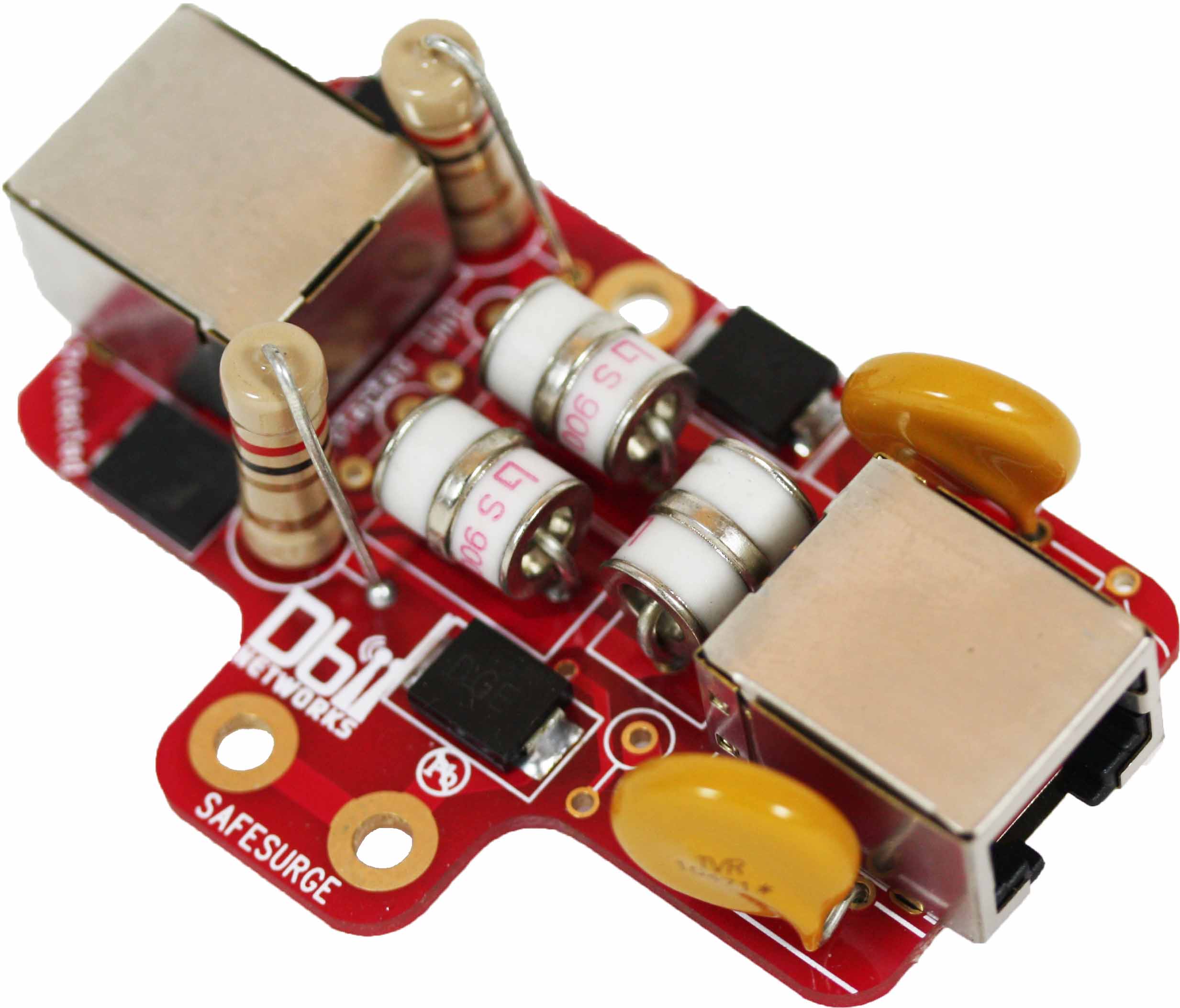

SafeSurge-PRO is our 2nd generation Ethernet Protection device that improves on the original SafeSurge.Designed to protect sensitive data-processing equipment the SafeSurge-PRO now features 10x the surge protectionas well as 50x faster response time compared to the original. The performance enhancement is now enterprise readyfor very large surge events.

Ethernet "Lightning" Protection

PoE Configuration
PoE Data Pins
PoE Power Pins
Max. POE operating Voltage
Surge Handling

Passive (Positive or Negative power supply)
1, 2, 3, 6
4, 5, 7, 8
Up to 57V
8/20uS (10kA)*

*The miniPCI card should be properly grounded with the supplied cable to achieve this level of protection.


Miscellaneous

Dimensions
Weight
Operational Temperature
Storage Temperature
Humidity
Included Accessories

Warranty

5.8 cm X 3 cm (2.3 inch X 1.17 inch)
22 grams (0.78 ounces)
-40C to +80C
-40C to +80C
0% to 95% (non-condensing)
15cm ground wire, 1 screw (4mm length for wire), 2 screws (5mm length to attach to PRO cards), 1 nut
One Year Limited Warranty
