U6 Mesh | U6-Mesh

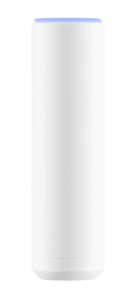

Picture of U6 Mesh | U6-Mesh

Sleek, indoor/outdoor WiFi 6 AP with 6 spatial streams designed for mesh applications.

Manufacturer: Ubiquiti

Be the first to review this product

Call for pricing

Quantity:

Description

WiFi 6

6 spatial streams

140 m² (1,500 ft²) coverage

300+ connected devices

Powered using PoE

GbE uplink

Versatile tabletop, wall, and pole mounting

Weatherproof (outdoor exposed)*

*Weatherproof when installed LED side up with the included pole/wall mount accessory.

Mechanical
Dimensions	Ø48.5 x 159.5 mm (Ø1.9 x 6.3")
Weight	400 g (14.1 oz)
Enclosure material	Polycarbonate, aluminum
Mount material	Polycarbonate
Weatherproofing	IPX5
Hardware
Networking interface	(1) GbE RJ45 port
Management interface	Ethernet Bluetooth
Power method	PoE
Power supply	UniFi PoE switch 48V, 0.32A PoE adapter (Included)
Supported voltage range	44—57V DC
Max. power consumption	11.4W
Max. TX power 2.4 GHz 5 GHz 6 GHz	22 dBm 26 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) –
Throughput rate 2.4 GHz 5 GHz 6 GHz	573.5 Mbps 4.8 Gbps –
Antenna gain 2.4 GHz 5 GHz 6 GHz	3 dBi 5 dBi –
LEDs	White/blue
Button	Factory reset
Mounting	Wall, desktop, pole (Included) Ceiling (Optional)
Ambient operating temperature	-30 to 60° C (-22 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Zero wait DFS	Yes* *Supported with upcoming firmware versions
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network	Version 6.2.51 and later
