  3. Wave MLO5 | Wave-MLO5

Wave MLO5 | Wave-MLO5

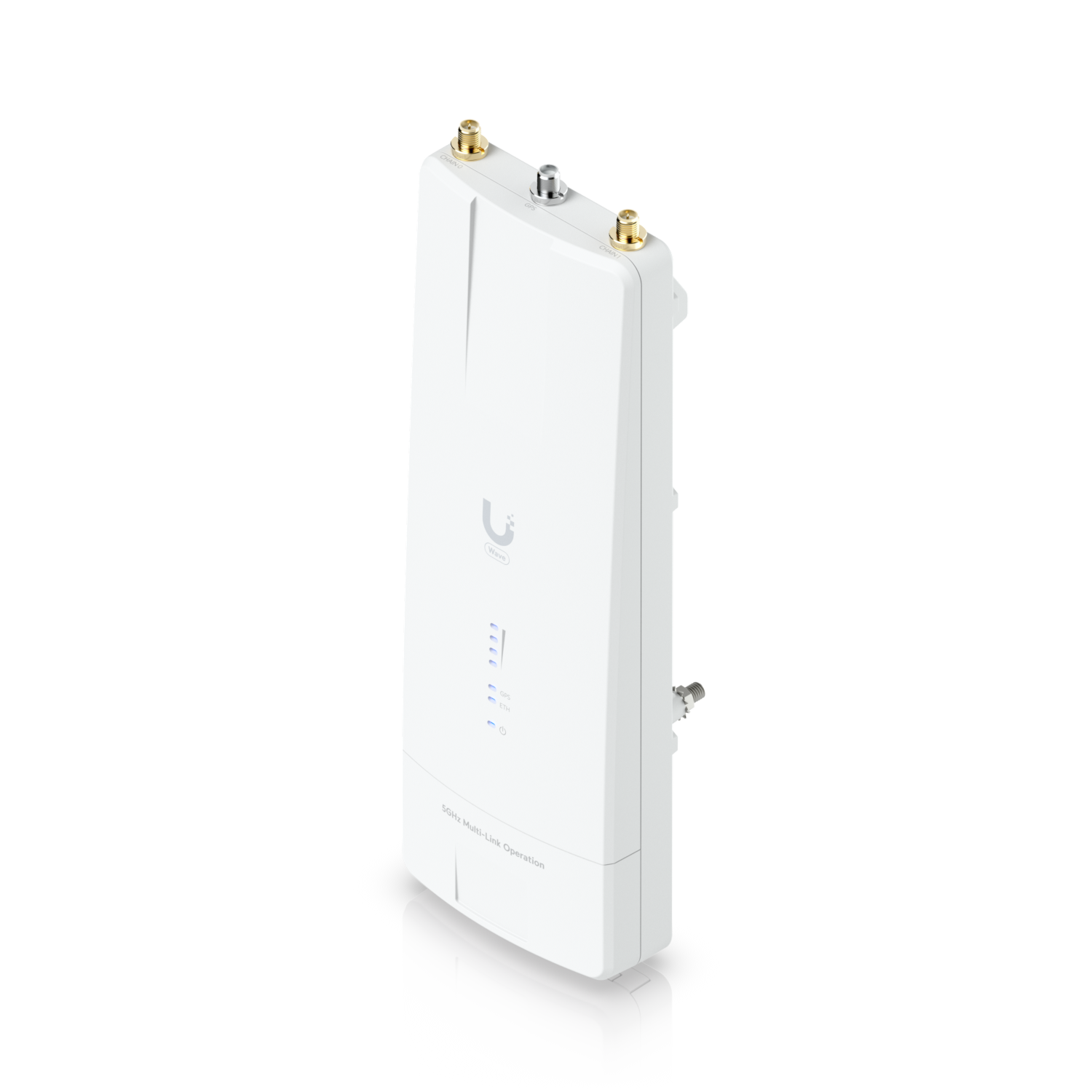

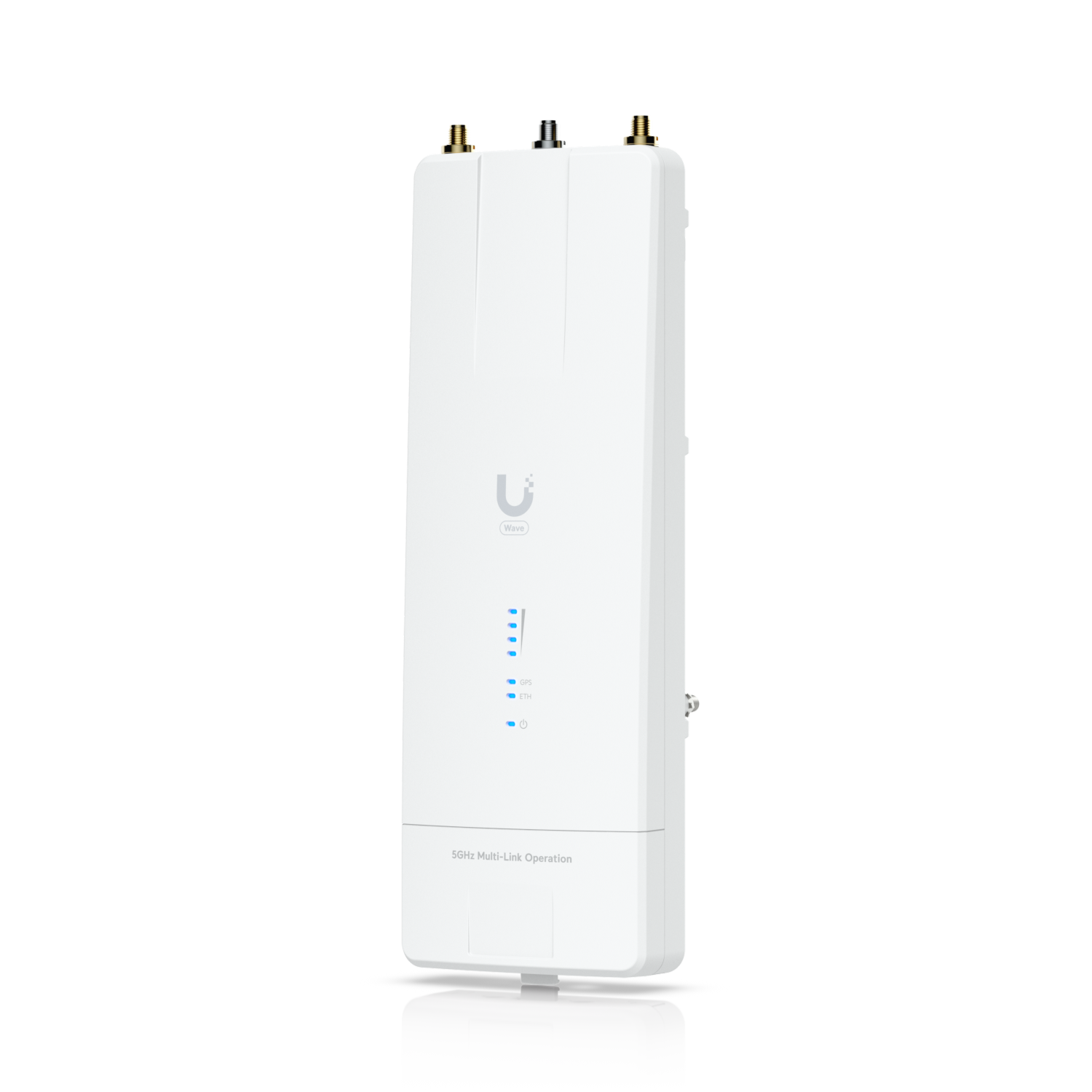

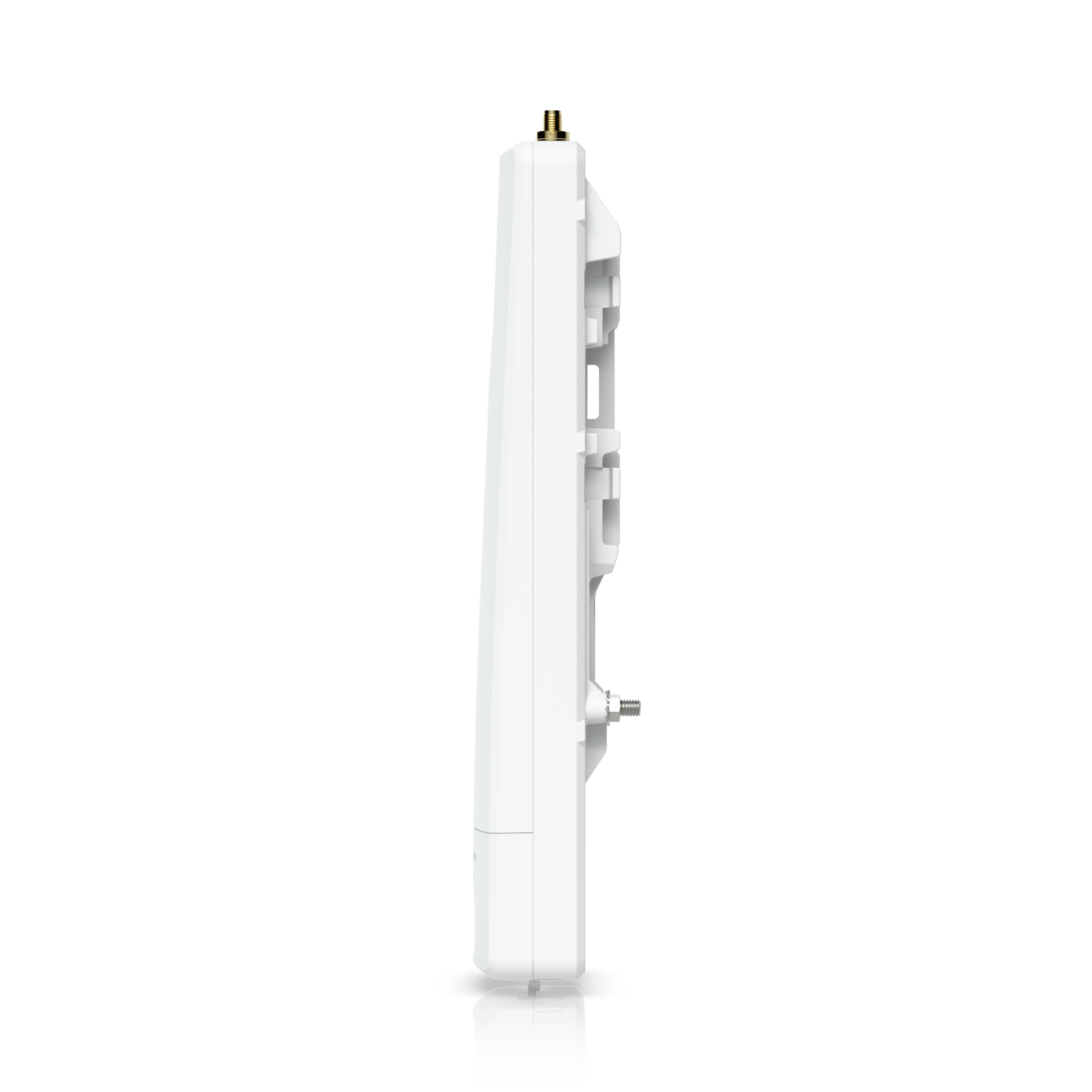

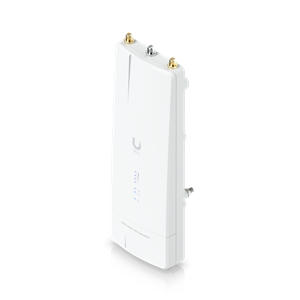

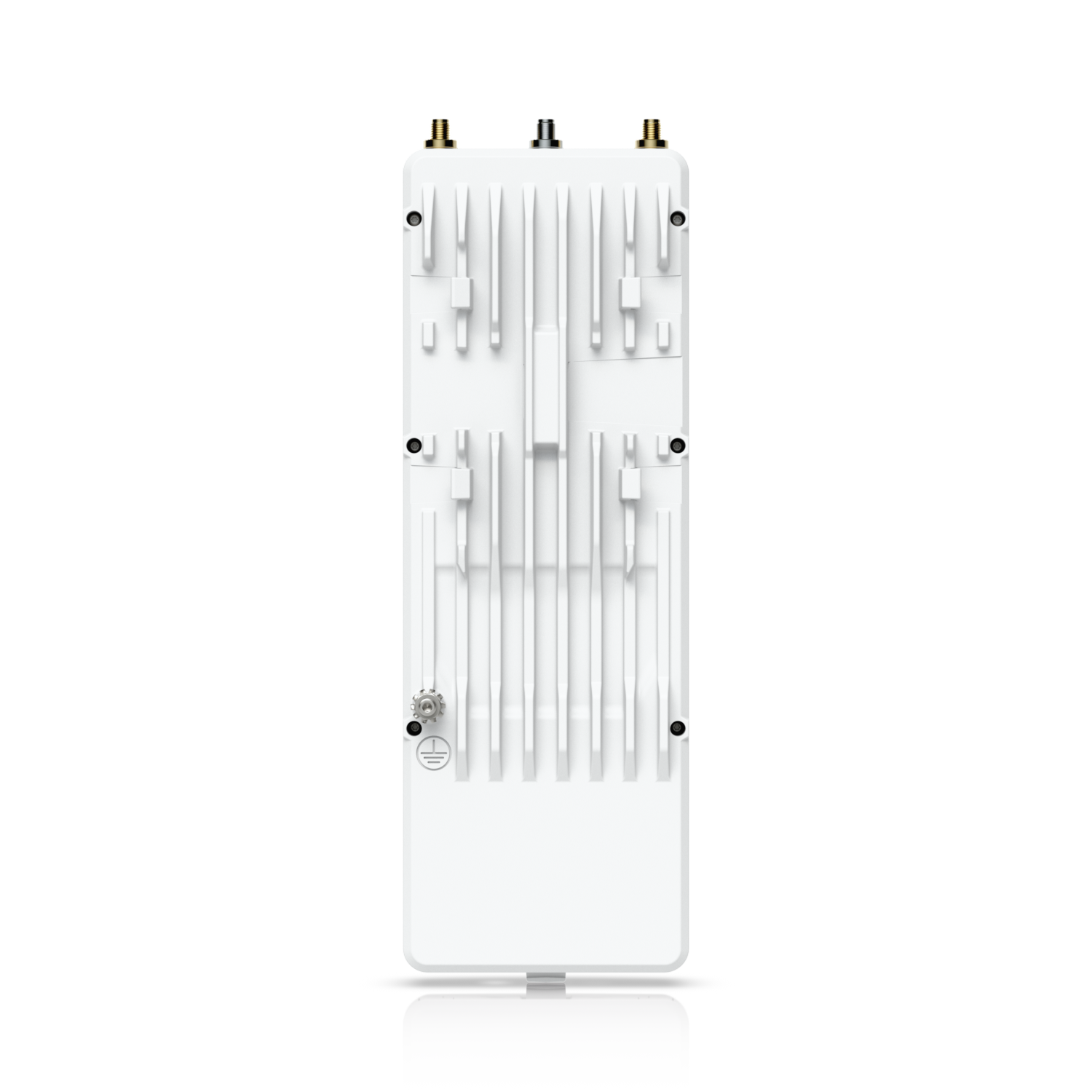

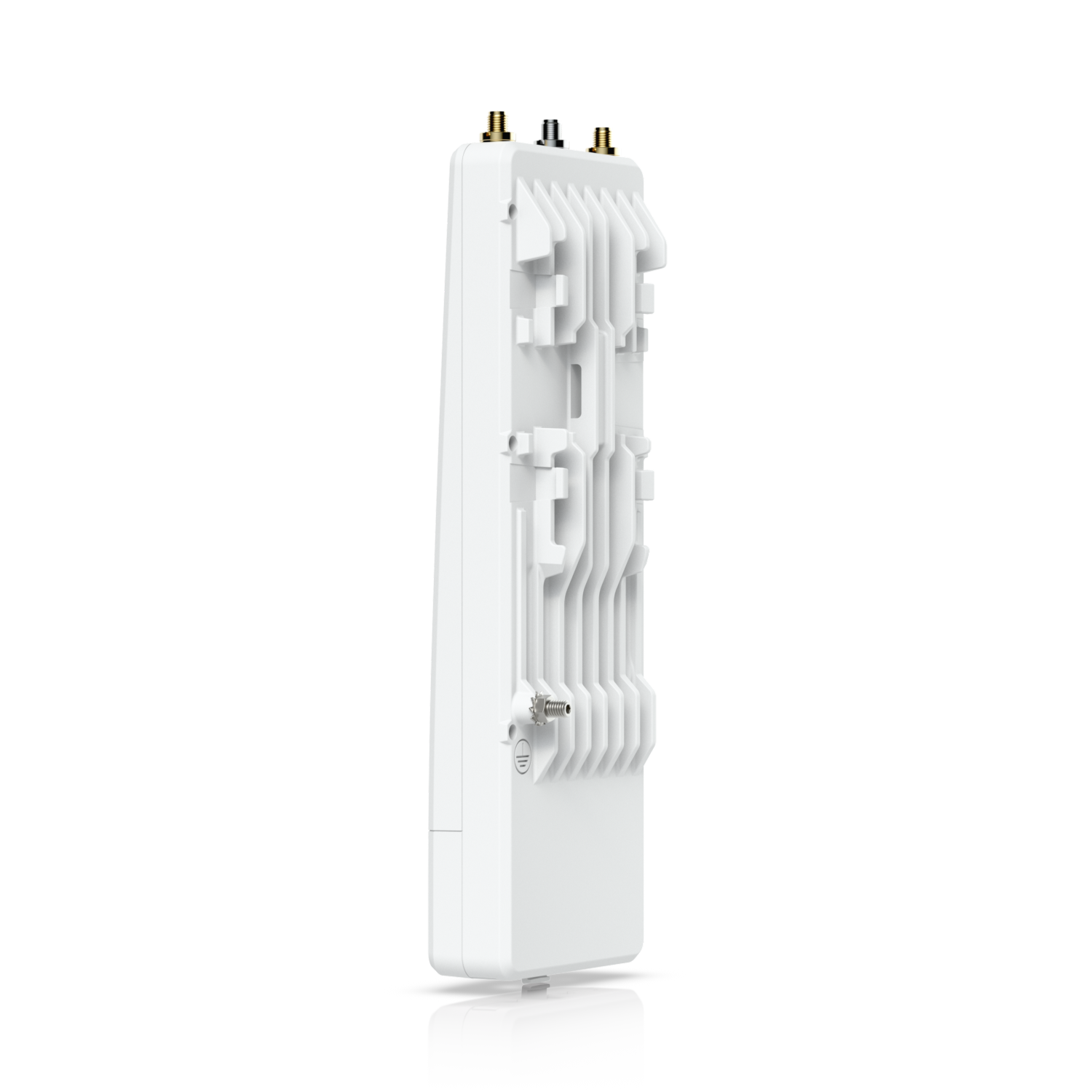

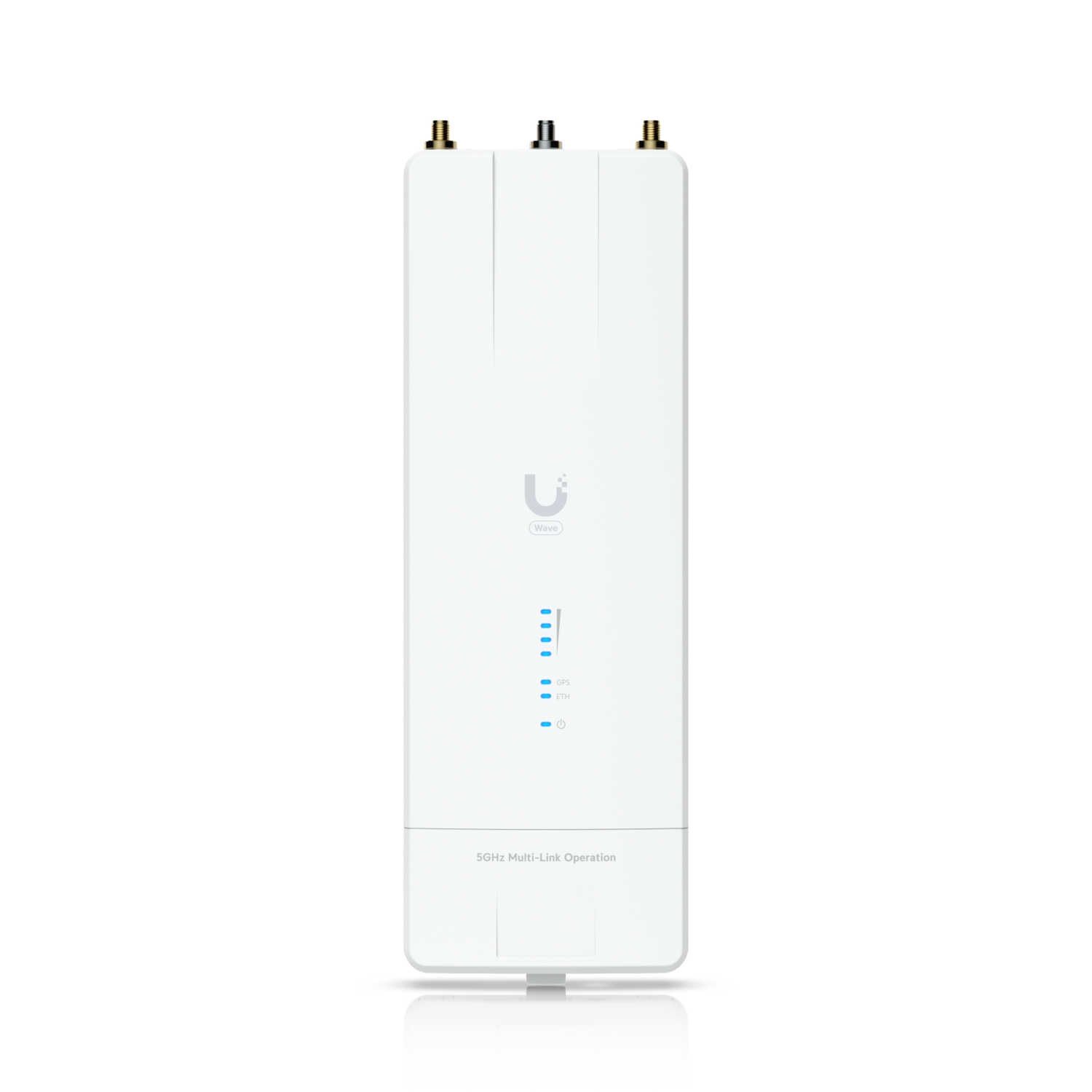

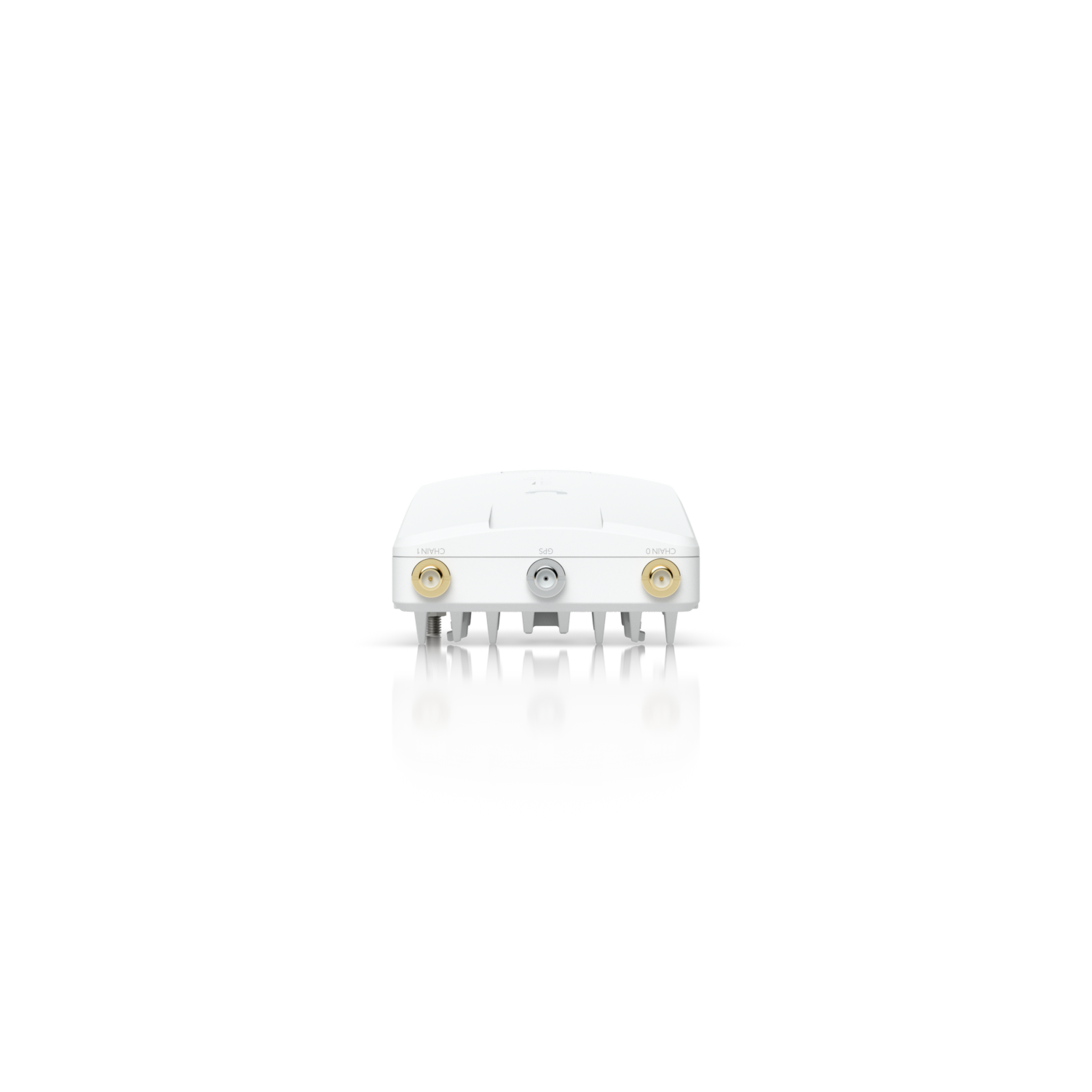

Picture of Wave MLO5 | Wave-MLO5
High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.
Manufacturer: Ubiquiti
Be the first to review this product
Call for pricing
Mechanical
Dimensions249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9")
Weight575 g (1.3 lb)
Enclosure materialAluminum alloy, UV-resistant polycarbonate
Mount materialStrap: stainless metal
Universal bracket: UV-resistant polycarbonate
Pole mount diameter25.4 to 50.8 mm (1 to 2") on pipe outer diameter
WeatherproofingIPX6
Hardware
ProcessorQuad-core IPQ5322 at 1.5 GHz
MemoryDDR4 1 GB

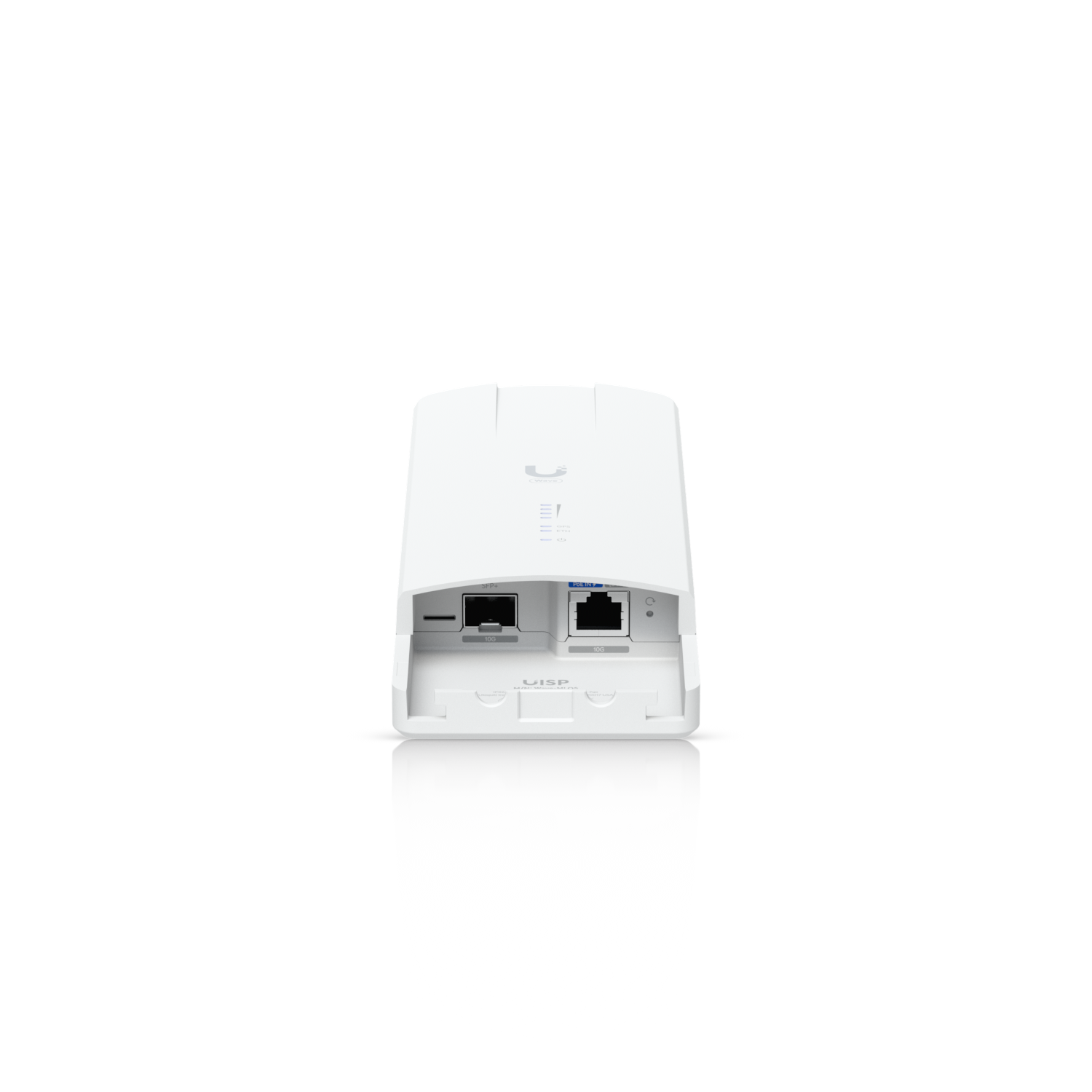

Networking interface(1) 10 GbE RJ45 port
(1) 10G SFP+ port
RF connectors(2) RP-SMA (Waterproof)
(1) GPS (Waterproof)
Max. power consumption20W
Power methodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply54V DC, 0.56A, 10 GbE PoE adapter (Included)
Supported voltage range44–54V DC
22–27V DC
Max. TX power*
5 GHz
24 dBm
*Depends on regulatory region.
MIMO
5 GHz
(2) 2 x 2
GPSYes
Button(1) Factory reset
LEDs(1) Power, (1) Ethernet, (1) GPS, (4) signal
Ambient operating temperature-40 to 60° C (-40 to 140° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsFCC, IC, CE
NDAA CompliantYes
Software
Operating modePtP
ServicesUISP, ping watchdog, NTP client
ToolsAlignment, speed test, ping, traceroute, discovery, site survey
NetworkBridge mode
Total throughput5+ Gbps
Max. range*100 km
*Throughput and range values may vary depending on the environmental conditions.
EncryptionWPA3-PSK (AES)
RF
Operating frequency*5180 – 5320, 5500 – 5700, 5745 – 5825 MHz
*Depends on regulatory region.
Channel bandwidthRadio 1: 20, 40, 80, 160 MHz
Radio 2: 20, 40, 80, 160, 240 MHz
ModulationBPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (?), 64QAM (¾), 64QAM (?), 256QAM (¾), 256QAM (?), 1024QAM (¾), 1024QAM (?), 4096QAM (¾), 4096QAM (?)
